TECNAM S.r.l.
http://www.tecnam.com/

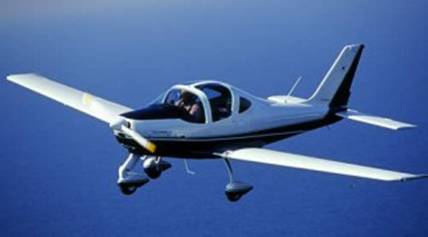

	P2002 JF
	DIMENSIONS Wing span 8,60 m 28.2 ft Length over-all 6,61 m 21.7 ft Height over-all 2.43 m 7.8 ft Width cabin 1.10 m 43.3” Wing area 11.5 m2 123.8 sq.ft. Wing Dihedral 5° 5° Tailplane span 2,9 m 9.5 ft Wheel track 1,85 m 6.1 ft Wheel tyres 5,00-5 5,00-5 ENGINE & PROPELLER Engine Rotax 912 S (FAR 33) Power max. 100 Hp @ 5800 rpm Reduction 2.4286 : 1 Propeller Hoffmann H017GHM Fuel Leaded, Unleaded or AvGas Tanks 100 Lt. (2x50)26.4 US gal WEIGHT MTOW 580 Kg 1279 lbs. Std empty weight 320 kg 705 lbs. Load ultimate factor +6 -3 +6 -3 PERFORMANCES (MTOW - ISA cond.) Max speed s/l 241 km/h 130 KTS Cruising speed 75% 215 km/h 116 KTS Rate of climb @ s/l 5.3 m/sec 1050 ft/min Stalling speed (flap) 72 Km/h 39 KTS Service ceiling 4267 m 14000 ft Take off run 180 m 591 ft Landing run 125 m 410 ft VNE 290 km/h 156 KTS
