REALITY AIRCRAFT Ltd.

http://www.realityaircraft.com

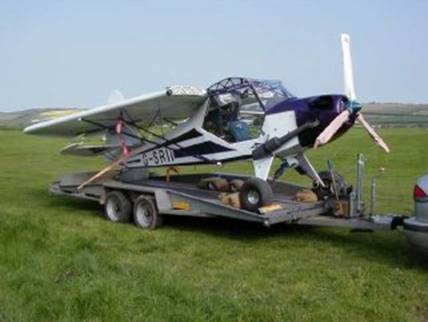

Easy Raider

Empty Weight with Jabiru 2200	495lbs	225kg
Empty Weight with Rotax 503	420lbs	196kg
Max Take-off Weight	990lbs	450kg
Wing Area	105 sq. ft.	9.77 sq. m.
Wing Span	28'	8.54m
Width Folded	8' 2''	2.49m
Length	17'	5.19m
Length Folded	20'	6.1m
Height	5' 9''	1.75m
Gear Width	5' 6''	1.68m
Max Cabin Width	2' 2 1/2''	0.67m
Min Cabin Width	2'	0.61m
Fuel Capacity	10 U.S. gal	40 ltr

Key to Data Below:

Rotax 503 49.6hp (2 Stroke)

Jabiru 80hp (4 stroke)

	At max weight of 450Kg				At Average Solo weight of 300Kg
	Corrected				Corrected
	Mph		Knots		Mph		Knots
VNE	132	132	115	115
Cruise (@ 14 Lph)	64	70	55	60	70	75	60	65
Max Cruise	74	85	70	75
Stall with Flaps 40º	39	39	34	34	23	23	32	32
Stall clean	41	41	36	36	27	27	34	34
	At 450Kg				At 300Kg
Take Off Roll	156m		80m		<100m		<60m
Take off distance to 50ft*	492m		332m		<250m		<150m
Landing Roll	139m		139m		<75m		<75m
Landing distance from 50ft	279m		279m		<180m		<180m
Climb Rate	3-400fpm		700fpm		750fpm		1200fpm
