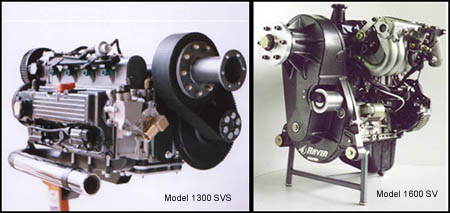

ENGINE MODEL
|
1300 SVS
Multi-port fuel injection
|
1600 SV
Multi-port fuel injection
|
|
Displacement
|
1298cc (80 in3)
|
1590cc (97 in3)
|
|
Power Output
|
90 hp* @ 5700 RPM
|
110 hp* @ 5500 RPM
w/ 6lbs boost
|
|
Bore
|
73.9 mm (2.91 in)
|
74.9 mm (2.95 in)
|
|
Stroke
|
76.9 mm (3.03 in)
|
89.9 mm (3.54 in)
|
|
Fuel
|
Unleaded Gasoline
|
Unleaded Gasoline
|
|
Weight
|
168 lbs
|
212 lbs
|
|
Reduction Ratio
|
2.26 to 1
with 62mm HTD Belt
|
2.36 to 1
with 85mm HTD Belt
|
|
Cooling
|
Water - Gycol Mixture
|
Water - Gycol Mixture
|
|
Ignition
|
Electronic w/single spark plug
|
Electronic w/single spark plug
|
|
Alternator
|
30 Amp
|
30 Amp
|
|
Fuel Delivery
|
Multi-Port Fuel Injection
|
Multi-Port Fuel Injection
|
|
Fuel Consumption
|
~3.0 GPH @ 75 percent power
|
~4.0 GPH @ 75 percent power
|
